Newest Performance ISO CCC Certificate Outdoor Loader Mounted Road Sweeper Truck

1.0 Sets
MOQ
$24,000.00(>=1 Sets)
Price
Newest Performance ISO CCC Certificate Outdoor Loader Mounted Road Sweeper Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Transmission Type: Manual
Emission Standard: EURO 5
Fuel Type: Diesel
Dimensions (L X W X H) (mm): 6200,5950x2000x2590,2380
Gross Vehicle Weight: 7360
After-sales Service Provided: Video Technical Support, Overseas Call Centers, Return And Replacement, Field Installation, Commissioning And Training, Online Support, Free Spare Parts, Field Maintenance And Repair Service
Name: Loader Mounted Road Sweeper
Color: Customer's Requirement
Chassis Brand: DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
Driving Type: 4x2
Certification: ISO9001 CCC
Engine: CY4BK551
Wheelbase (mm): 3308, 2800
Water Pump: 3000L/min
Application: Outdoor Performance
Keyword: Vehicle Communication
Basic Infomation
Certification: ISO9001 CCC
Payment & Shipping Terms
Packaging Details: waxed before shipment
Supply Ability: 9000 Unit/Units per Year
Product Description
Product Description

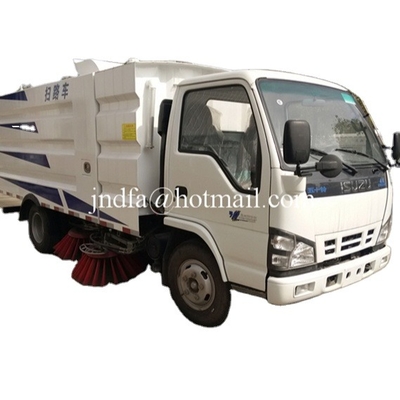

ISO CCC certificate Newest Loader Mounted Road Sweeper truck
Product Description
[Complete vehicle technical parameters]
Total mass (Kg): 7360
Rated load quality (Kg): 2190
Service quality (Kg):5040
Dimensions (mm): 6200,5950x2000x2590,2380
Carriage size (mm):××
Approach angle / departure angle (°): 20/12
Front suspension/rear suspension (mm): 1040/1852,1040/1602
Shaft charge (Kg): 2640/4720
The maximum speed (Km/h): 99
Note
1.Protective material: Q235A carbon steel, connection method: left and right side protection device interferes with the special device so it can be exempted; the rear lower protection device is connected with the girder bolt, the rear protection section size(mm): 100×50, rear protection Height above ground (mm): 380.
2. Optional front cover and front fog lamp are installed with the chassis; Optional dust box and single sweep brush device, top mounted optional new form.
3. Text spray location and vehicle color can vary.
4. The relationship between the vehicle length/wheelbase/rear suspension (mm) is:6200/3308/1852, 5950/3308/1602.

[chassis technical parameters]
Number of axes: 2
Number of tires: 6
Wheelbase (mm): 3308, 2800
Tire specifications: 7.00-16, 7.00R16
Number of leaf springs: 6/6+56/6+5
Front track (mm): 1503, 1485, 1519, 1595
Fuel Type: Diesel
Rear track (mm): 1494, 1516, 1540
Emissions based on criteria: euro V
Engine Model:CY4BK551
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Displacement (ml): 3707
Power (Kw): 75
