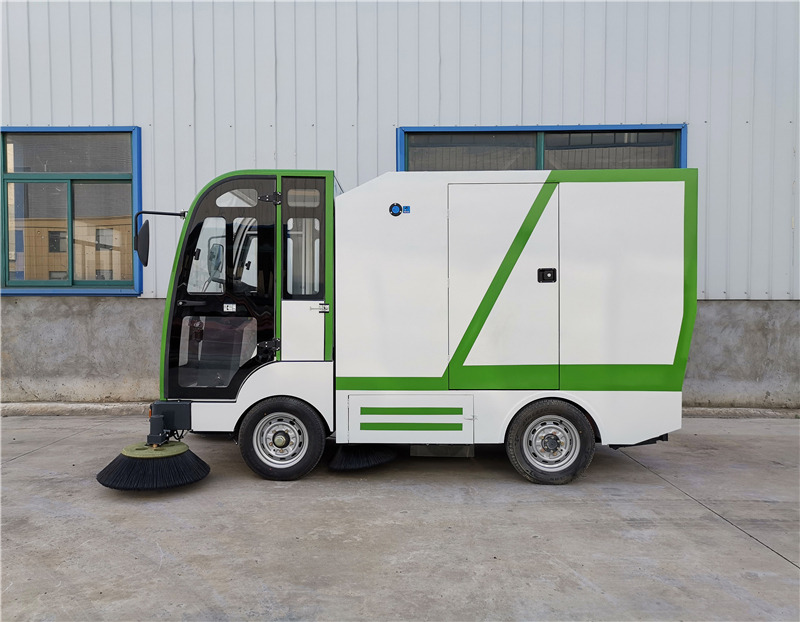

KW-2200F is added the fully closed cab with full visibility as the cab forward design that give operator a clear view of the sweeping area. The machine is mostly suitable for flat ground and well-conditioned areas, with extensive utilizations in mining spots, offices, storehouse, school and residential communities etc. It has impressive performance in environment protection and energy saving, therefore capable of boosting your company image significantly.
TECHNICAL PARAMETER | ||||||
1 | Machine Model | KW-2200F | ||||
2 | Sweeping width | mm | 2200 | |||
3 | Cleaning efficiency | sqm/h | 19000 | |||
4 | Max gradeability | % | 30-40 | |||
5 | Main brush length /Quantity | mm | 690 * 5 pcs | |||
6 | Battery | V/Ah | 48V/150 Ah (12 pcs) | |||
7 | Battery kind | Maintenance free battery | ||||
8 | Continue working time | h | 5-8 | |||
9 | Dustbin capacity | L | 240 | |||
10 | Water tank capacity | L | 180 | |||
11 | Side brush diameter / Quantity | mm | 700 * 4 pcs | |||
12 | Driving motor power | w | 3000 | |||
13 | Max working speed | km/h | 16 | |||
14 | Max driving speed | km/h | 36 | |||
15 | Machine dimension (L*W*H) | mm | 3380*2100*2000 | |||
16 | N.W | kg | 1380 | |||
· Comfortable cab, wide vision, side window, good ventilation, If customer need, the cold and warm air conditioning can be equipped.
· 13 inches pneumatic vacuum tire, easy to climb the curb, and has hand brake and foot brake, increase safety.
· Equipped with EPS power assist system, color LCD reversing camera, working warning light, safety guide light and other safety configuration.
· According to customer's requirements, the water tank can be enlarged and equipped with high-pressure washer and fog cannon to achieve the effect of dust removal and haze removal .
· The side brush is equipped with water spray device, can control flying dust.
· The hand-held straw can suck leaves , dust and others from road teeth, lawn and other places where sweeper can not clean.
