Home /Products/Highway Road Sweeper/Garment Shops DONGFENG 4x2 Pure Electric Sanitation Road Sweeper Truck High Pressure Cleaning Truck Road Sweeps Vacuum Sweeper Vehicle

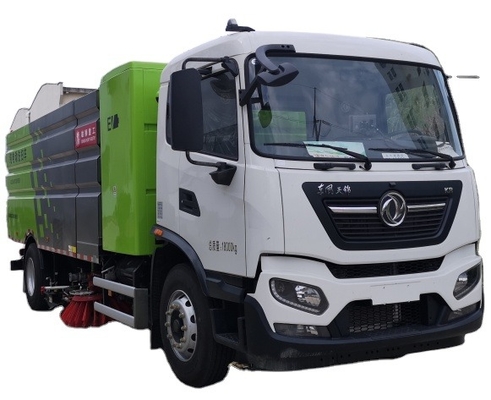

Garment Shops DONGFENG 4x2 Pure Electric Sanitation Road Sweeper Truck High Pressure Cleaning Truck Road Sweeps Vacuum Sweeper Vehicle

1 unit
MOQ
$238,500.00(1 - 4 units) $223,100.00(5 - 9 units) $208,000.00(>=10 units)
Price
Garment Shops DONGFENG 4x2 Pure Electric Sanitation Road Sweeper Truck High Pressure Cleaning Truck Road Sweeps Vacuum Sweeper Vehicle
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Dimension(L*W*H): 9030,9060*2500*3020mm
Weight: 18000 Kg
Warranty: 1 Year
Drive Type: LHD RHD
Color: Customer's Requirement
Water Tank Volume: 8.5m³
Clean Sweep Width: 3500mm
Container Capacity: 7m³
Product Name: Brooms Vacuum Sweeper Vehicle
Usage: Urban Garbage Cleaning
Battery Type: Lithium Iron Phosphate Battery
Rinse The Width: 26m
Water Gun Range: 38m
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wax before export
Supply Ability: 1 Unit/Units per Week
Product Description
Product Overview
Pure electric cleaning and sweeping vehicle is a new generation of integrated pure electric cleaning vehicle integrating dongfeng new energy sanitation chassis + jacket + three electric integrated design.

●Safety protection of electric vehicle

Combined with the special working conditions of the sanitation truck, the safety protection of the system was considered, and the installation and use specifications were formulated.

●Spray hopper gun

The whole vehicle is equipped with 20 meters high pressure tube automatic coil, with self-cleaning, non-motor lane and street advertising cleaning and clear functions.

●High quality lithium battery, long working time, fast charging speed

It adopts 314.14 degree lithium iron phosphate battery with large capacity and high energy density from ningde Times, the waterproof and dustproof grade of the battery system reaches IP68. The endurance range is up to 250 km, the standard operating power consumption is as low as 40 degrees/hour, a single charge can operate 8 cases of water, meet the needs of 8 hours a day,charging speed is fast, fully charged in 2.5 hours.

●Independently developed vehicle electronic control system and HCU

HCU is independently developed and designed by Dongfeng Commercial Vehicle Co., LTD. The core microprocessor chip adopts 32-bit Freescale processor, and the chassis control strategy integrates dongfeng's 50 years of truck manufacturing experience. Supported by the driving experience data of 100,000 customers, HCU improves the daily driving comfort of truck drivers.

● After spray facility

Using atomizing nozzle, long life, wear resistance nozzle flow intelligent control, atomizing spray particle size 50-150
micron,spraying range is wider, can effectively suppress dust, adjust air humidity, improve air quality.

●Left and right high pressure angular spray

High pressure washing nozzle, long service life, wear resistance, strong washing force, good washing effect, suitable for highway pavement, roadside guardrail isolation belt, sidewalk washing work.

●High degree of intelligence

The vehicle electric control system, hydraulic system and gas path system adopt CAN bus control technology, with intelligent fault diagnosis function, and equipped with intelligent monitoring terminal, CAN provide vehicle operation status, real-time monitoring and intelligent services.

●Mounted power unit

Electric control of the power motor adopts the domestic famous brand Suzhou Green control motor, the maximum torque can reach 750n. m, the peak power can reach 120KW. The clutch adopts the domestic famous brand Xiamen Nanchao pneumatic, automatic three-in-one clutch.

●Hedge

The Angle and height of the hedge can be adjusted, the operation is flexible and changeable, the width of the hedge can reach more than 24m, easily meet the use of two-way 6-channel road, large and concentrated water, can effectively wash stubborn stains.

●After sprinkle the nozzle

Nozzle mouth Angle range is large, uniform spraying, spraying to both sides of the coverage of more than 16m.

●Good results

In two sweep of plate + width of suction nozzle + about high pressure water spray rod + high side of the operation mode of the spray rod, scrub + high pressure flushing + water recycling system, can effectively remove the road smooth and adhesion in road surface stains,homework less spatter, sewage net absorption rate is high, cleaning large width,
the high efficiency, good effect,suction, flushing force is big,It can suck the garbage with the largest diameter over 100mm, the flushing pressure is up to 12MPa, and the cleaning rate is up to 99%. It is suitable for cleaning operations of secondary roads and branch roads.
PRODUCT SPECIFICATIONS
No
Item
Data
Item
Data
1
Dimensions(mm)
9030,9060*2500*3020
Mount Power Motor Rating/Peak Torque
400/750N.m
2
Chassis Models
EQ1180GEVJ1
Water Tank Volume
8.5m³
3
Gross Mass(KG)
18000
Container Capacity
7m³
4
Unladen Mass(KG)
14060
Max Inhaled Particle Size
100mm
5
Battery Type
LFP
Clean Sweep Width(m)
3.5
6
Battery Brand/Electric C Quantity
Ningde Time/314.14Wh
Rinse Width(m)
26
7
Drive Motor Rating/Peak Power
80/160KW
Water Gun Range(m)
38
8
Mount Power Motor Rating/Peak Power
83.7/120KW
After Sprinkle Width(m)
16
SIMILAR PRODUCTS
Customize Pure Electric High Pressure Brooms Vacuum Sweeper Vehicle,please contact Zoe’s WeChat and WhatsApp: 0086-18790149285.
