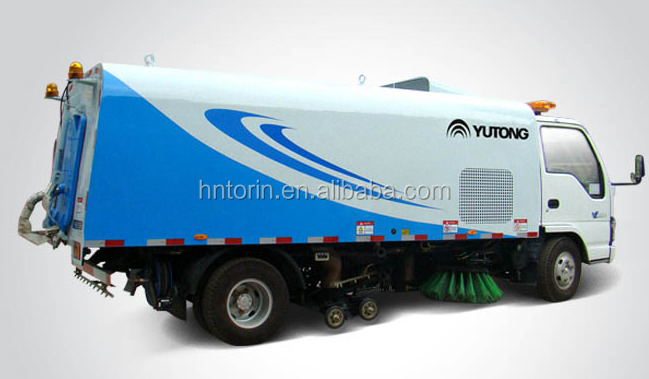

Cleaning sweeper truck ,road sweeper truck, street cleaning vehicle
Product parameters
| Cleaning width(m) | 3.1 |
| Cleaning Speed(km/h) | 3~15 |
| Cleaning water pressure(MPa) | 10 |
| Cleaning water flowing(L/min) | 80 |
| Max suction granularity(mm) | 110 |
| Sweeping width(m) | 3 |
| Operating speed(km/h) | 3~20 |
| Max cleaning power | 60000 |
| Discharge angle(°) | ≥45 |
| max volume of water tank(L) | 4500 |
| max volume of sewage tank(L) | 2800 |
| Max speed(km/h) | 100 |
| MAX Gradeability(%) | 30% |
| Braking distance(m) | ≤10 |
| Min turning diameter(m) | 13.6 |
| fuel consumption(L/10000) | 12.8 |
| Curb mass(kg) | 5670 |
| Total mass(kg) | 7300 |
| Dimensions size(mm) | 6530×2050×2470 |
| Wheelbase(mm) | 3815 |
| Min ground clearance(mm) | 140 |
Features
1.The use of “two mid-wide sweep in center+ wide nozzle in center and
high-pressure water spray bar in inner+ high pressure spray lance in the
center" this technical structure, and the left and right lance together with
spray nozzle,features working device centralized, suction nozzle spacing
from the ground is constant and other characteristics.
2.Left and right highpressure lance with the nozzle group"V"type,hydraulically operation retractable, and can adjust the "V"-shaped angle and high-pressure water nozzle angle, flow impact force, sewage collection efficiently is high and lance has collision avoidance and automatic reset function;
3.With road sweeping, road washing, pressure cleaning, Curb wash, sewage recycling, road spray,wall cleaning and other functions;
4.High-pressure water control system with advanced technology,when the high
pressure water pump starting and working water valve switching, the pump
can automatic unloading, Tank equipped with a low water level sensoralarm system,
automatic alarm when anhydrous, prevent damage the pumpbecause of water shortage
5.The car choosing Atos hydraulic valve that imported from Italy, hydraulic system has been further optimized, fully guarantee the car still can normally work in the hot summer;
6.The vehicle choosing the SUS304 stainless steel models which produced byworld-class listed companies "Taiyuan Iron and Steel Company",to ensure
the quality of the box! Using a large volume tank,extending the single working hours, improve the working efficiency of the vehicle!
7.Using high-pressure pumps that imported Italian, the maximum pressure
up to 10MPa, the flow of 80L / min, high strength stainless steel pump head, high wear-resistant ceramic plungers, world-class quality! Using the world-class American company high-pressure nozzle spray to avoid corrosion,rust,
etc.!
8.Using Japanese omron PLC controller control the vehicle,a key control can realize in cab, high level automation,with voice alarm device, can accuratelybroadcast a variety of safety tips and troubleshooting; automatic alarm when anhydrous, prevent damage the pump because of water shortage.Prevent overflowing alarm device can prevent sewage from overflow in straw when working, causing secondary pollution,also configure the work camera, optional GPS satellite positioning, reversing radar and other devices, can be completed used to the vehicle's real-time monitoring.
9.Vice-engine install turbo booster,improved engine power and fuel
efficiency,and reduce the environmental pollution.
Application:
YTZ5070TXS70F type Sweeping car with cleaning roads and clean the road
two big main functions, not only can as washing cars use but also as a sweeper to use.Widely used in urban roads, airports, docks, bridges, squares, isolation walls, curbs and curbs facade mechanized cleaning, sweeping, spraying dust, cleaning jobs. When cleaning, by way of high pressure and low flow to clean, strong decontamination,efficient water-saving, especially suitable for
urban road left,on the right side,curb and road kerb facade cleaning operations,and can recycle clean sewage contamination.So after cleaning,the pavement, curbs and curbs facade will not have any sewage, can achieve the effectof clean,no stains,no water,thus greatly improving the degree of cleanlinessof the urban roads.
