Construction works   Dust Suppression Truck For Road Maintenance Road Vacuum Sweeper Road Cleaner Machine

On the basis of many years experience of highway maintenance and construction, TongDa Combined with the actual working site requirements and the state of China road maintenance, researched and developed a number of small road maintenance equipment. Such as road crack-seal machine, grooving and vacuuming sweeper.

This vacuum sweeper is researched and developed by ourselves, especially for road crack-sealing and grooving works.

It has the characteristics of easy operation, high dust absorption efficiency and continuous running.

TDX-1500 vacuum sweeper is researched and developed by ourselves, especially for road crack-sealing and grooving works.It has the characteristics of:

1. Widely application: Gravel, dust recovery operations in road crack-sealing, groove repair construction.

2. Easy operation: Equipped with variable-speed unit, according to the construction situation can be stopped at any time, convenient and fast.

3. High efficiency: Dust absorption efficiency can reach 99%.

4. Uninterruptable Power Supply: Auto charging, realize continuous work.

5. Auto unloading. The recovered particles can be dumped with one button, save time and labor intensity.

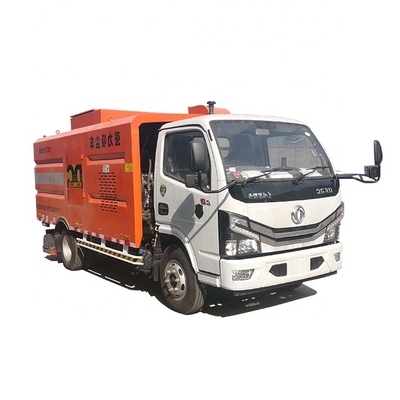

HTN5075TSL suction car is modified by dongfeng original chassis, with auxiliary engine, fan, dustbin, rear suction cup, far-infrared video probe, automatic pulse cleaning function, hydraulic system, special electronic control system and auxiliary frame.It has the characteristics of:

1. Widely application: Gravel, dust recovery operations in road crack-sealing, groove repair construction.

2. Easy operation: Equipped with variable-speed unit, according to the construction situation can be stopped at any time, convenient and fast.

3. High efficiency: Dust absorption efficiency can reach 99%.

4. Uninterruptable Power Supply: Auto charging, realize continuous work.

5. Auto unloading. The recovered particles can be dumped with one button, save time and labor intensity.

1. Dongfeng original chassis, diesel engine, 82 HP, 5-gear transmission, cab with rollover, with directional power, 7.00R16 tires, low fuel consumption, low noise.

2. The auxiliary engine adopts jiangxi Isuzu 57Kw engine with strong performance.(Optional Yuchai engine)

3. Adopt the maintenance-free, stepless variable speed automatic clutch of Xiamen South, which drives the fan to reduce the impact on the engine when the fan starts and stops.The clutch has the advantages of high wear resistance, long service life and low noise during use.

4. It adopts the high-power wear-resistant and maintenance-free centrifugal fan of the listed company -- Taiwan Xinfeng North Glass, with low noise, high efficiency, large air volume and long service life.

5. The dumpster has a volume of 5m, and the filter cartridge is equipped with imported polyurethane film coated waterproof material. The filter cartridge is acid-alkali resistant, high-temperature resistant, corrosion resistant, large filtration area, high filtration efficiency, small operation resistance, high permeability, high strength, large pull force, easy ash cleaning and other characteristics.

6. The width of the main sucker is 1750mm, the width of the left and right secondary suckers is 450mm, and the maximum operation width is 2.5m.Four adjustable suction nozzle wheels of high height can facilitate the adjustment and guarantee the reasonable clearance between the suction disc and the road surface, so as to achieve better vacuuming effect and higher vacuuming efficiency

7. The truck has the function of automatic pulse cleaning, vice machine with pump and tank volume, to a certain pressure, open the high voltage pulse reverse blowing device, to be back in the cartridge, cartridge in the work is not easy to jam, effectively improve the suction, which can achieve a better cleaning effect, computer PLC control, adjustable pulse interval of time.

8. German Siemens electric control system is adopted to control the hydraulic system to drive the main suckers up and down, drive the left and right pair suckers, pulse cleaning function, open and close the bin back door, and reset the bin tilting, with simple operation.

9. The driver room is equipped with a display screen. When the vehicle is working, it can monitor the suction cups of the front and rear side of the vehicle and the main and auxiliary components, so that there is no dead corner in the work and the driver is more convenient and efficient.

10.The hydraulic pipeline adopts German standard technology sealing structure form, good anti-vibration performance, high sealing reliability, can achieve no leakage sealing effect.

11.Using high quality hydraulic solenoid valve, key electronic control components using Siemens switches, high reliability, long service life.

12. Hydraulic components are designed with integrated superposition, and the electric-hydraulic control in the cab is centralized, making it easy to operate.

13. Equipped with manual pump emergency system, the auxiliary engine can also be lifted under the state of stop, easy maintenance.

14. Non-stainless steel parts are treated with electrophoretic rust prevention and durable.

15. The sub-frame bearing beam is welded with square steel with a section length of 120mm, width of 60mm and thickness of 8mm, which ensures the safety of the whole vehicle and makes it safer to drive.

16. Computerized appearance design, high side skirt, curved surface transition, overall coordination and symmetry.Achieve low fuel consumption, low noise, streamlined appearance design.

 Xinxiang TongDa Road New Technology Co., Ltd. is a highly innovative science and technology enterprises engaged in making highway maintenance materials, road maintenance mechanical equipment and researching maintenance of new technology. TongDa is a R&D and export enterprise combined with sales and service, integrating road construction and equipment production. It mainly covers special-purpose vehicles (fiber micro-surface-slurry sealer paver series, asphalt distributor series, fiber synthetic chip sealer series) and pavement maintenance equipment (asphalt emulsification equipment, road sweeping equipment and potting smidahk construction equipment) and other equipments’ R&D, production, sales and technical services.

1. Are you manufacturer or trading company?

     We are direct manufacturer with the experience of 17 years.

2. Do you have oversea service?

     When you have some problems which you can't solve, we will arrange our engineers to your country to help you.

3. How about your product quality?

     All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

4. Payment terms?

     TT, LC.

If you have special needs, please contact us, we can try our best to customize according to your needs!
