Airport Construction and Surface Material Stores 8cbm Road Layer Vacuum Sweeper Cleaning Truck

1.0 Units
MOQ
Airport Construction and Surface Material Stores 8cbm Road Layer Vacuum Sweeper Cleaning Truck
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Construction Works, Energy & Mining, Municipal Administration
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty Of Core Components: 1 Year
Core Components: Engine, Motor, Pump
Condition: New
Dimension(L*W*H): 7780*2500*3240
Weight: 18000 Kg
Warranty: 1 Year
Product Name: Road Sweeping Truck
Emission: China VI
Engine Rated Power: 155KW
GVW (kg): 18000
Payload (kg): 5005
Garbage Tank Volume (cbm): 8.1
Water Tank Volume (cbm): 2.0
Wheelbase (mm): 45000
Sweeping Width (m): 3.5
Ari Conditioner: Warm/Cold
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard export package.
Supply Ability: 15000 Unit/Units per Year
Product Description
Product Information

Product Display

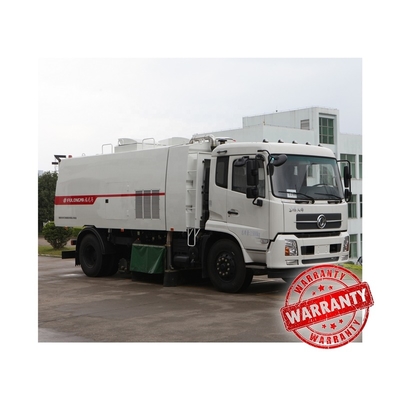

Dongfeng 8cbm highway or airport road cleaning vacuum sweeper truck
This vehicle is a new generation road sweeper combining sweeping and suction functionb. It is mainly suitable for mechanized cleaning and sweeping operations in city streets, municipal squares, and large factories and mines. The truck has high operating efficiency, advanced and reliable technical performance, beautiful appearance, and has distinctive FULONGMA brand characteristics.
PRODUCT SPECIFICATIONS
No.
Item
Data
1
Chassis Model
DFL1160BX1V
2
Emission Standard
China V
3
Engine Model
ISD210 50
4
Total Mass (kg)
18000
5
External Dimension(mm)
7780×2500×3240
8
Wheelbase (mm)
4500
9
Working Speed (km/h)
5~25
10
Water Tank Volume (m³)
2.0
11
Garbage Tank Volume (m³)
8.1cbm
12
Sweeping Width (m)
3.5
13
Sweeping Capacity (/h)
87500
Strong Tank Body
The garbage tank adopts the overall stainless steel single-layer structure, which will not rust. The garbage tank adopts an inclined plate structure, which is convenient for unloading without manual intervention.

Gutter Brooms

The sweeping tray of this vehicle adopts a central four-tray sweeping structure, which sweeps the road garbage to the middle of the vehicle during the cleaning operation, which is convenient for the suction nozzle to pick up.

Vacuum Nozzle

Each sweeping pan is equipped with 2 nozzles, and high-pressure spraying can be used to reduce dust during the sweeping operation, so that the dust concentration is less than 2.5 mg/cbm.
In-cab Control
The vehicle adopts the control mode of "display screen + controller + CAN bus operation panel". When the sweeping application is started and stopped, the auxiliary engine speed control, suction nozzle lifting, sweeping and retraction and other operation devices are all controlled by one button, which is easy to operate. The operation of the vehicle is realized by 3 operating devices, two of which are in the cab and one is on the right side of the rear of the vehicle

In-cab Control Panel

Rear Control Box
